| 브랜드 이름: | JFDL- Intercooler Inlet Steel Pipe Assembly |
| 모델 번호: | WG9727530009 |
| MOQ: | 1 피스 |
| 가격: | 협상 가능 |
| 포장에 대한 세부 사항: | 통합 판지, 내부에 버블랩으로 포장하고 외부에는 필름으로 포장합니다. 대형 품목은 고객 요구에 따라 팔레트화 또는 포장 가능 |
| 지불 조건: | L/CD/AD/PT/T.웨스턴 유니온,머니그램 |

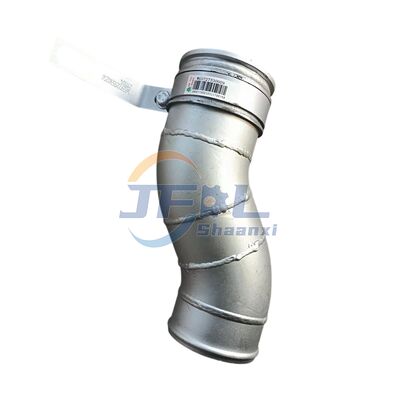

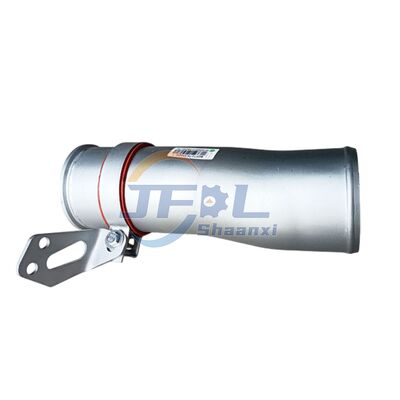

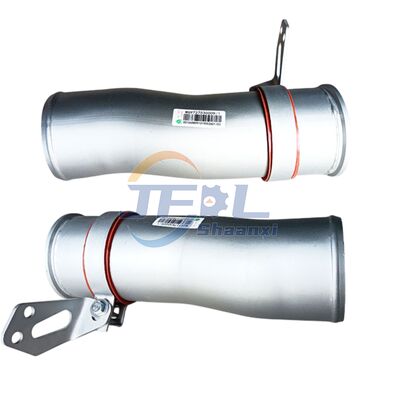

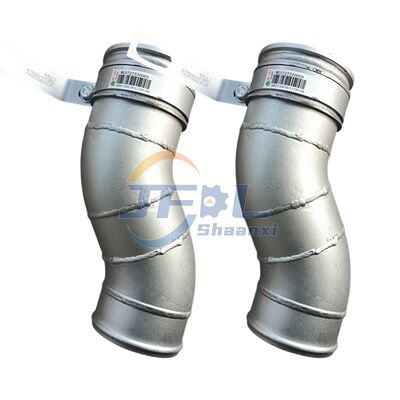

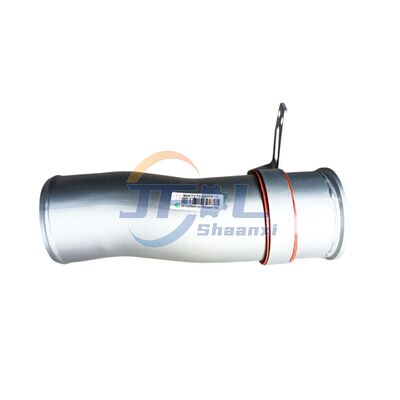

| Product Name | Intercooler Inlet Steel Pipe Assembly |
| Part Number | WG9727530009 |
| Application | Chinese Supplier SINOTRUK HOWO TX,TH7 Truck |
| Condition | New |
| Packing | Carton,Wooden Box, Pallet |
| Quality Standard | 100% Tested |
| System | Engine Intake System |
| Dimensions | Inner diameter 63mm/Outer diameter 70mm, wall thickness 3.5mm.Total length: ~680mm.Bend angles: 30°+45° |
| Connection | Flange + clamp with NBR seal ring |
| Material | Q345B low-alloy steel (15CrMo optional) Surface treatment: Electrophoresis + spray coating, salt spray resistance ≥480h |
Pressure & high temperature resistance: Adapted to turbocharger exhaust temperature of 150-200℃ and boost pressure of 0.8-1.2MPa, with no easy deformation during long-term operation.
Corrosion resistance & durability: Double-layer anti-corrosion coating combined with alloy material, suitable for dusty, high-humidity working conditions such as construction sites and mining areas.
Perfect compatibility: The bending angle and length of the steel pipe are precisely matched to the vehicle layout, avoiding interference with surrounding components, and no re-drilling or rewiring is required for installation.
|
|
| 브랜드 이름: | JFDL- Intercooler Inlet Steel Pipe Assembly |
| 모델 번호: | WG9727530009 |
| MOQ: | 1 피스 |
| 가격: | 협상 가능 |
| 포장에 대한 세부 사항: | 통합 판지, 내부에 버블랩으로 포장하고 외부에는 필름으로 포장합니다. 대형 품목은 고객 요구에 따라 팔레트화 또는 포장 가능 |
| 지불 조건: | L/CD/AD/PT/T.웨스턴 유니온,머니그램 |
| Product Name | Intercooler Inlet Steel Pipe Assembly |
| Part Number | WG9727530009 |
| Application | Chinese Supplier SINOTRUK HOWO TX,TH7 Truck |
| Condition | New |
| Packing | Carton,Wooden Box, Pallet |
| Quality Standard | 100% Tested |
| System | Engine Intake System |
| Dimensions | Inner diameter 63mm/Outer diameter 70mm, wall thickness 3.5mm.Total length: ~680mm.Bend angles: 30°+45° |
| Connection | Flange + clamp with NBR seal ring |
| Material | Q345B low-alloy steel (15CrMo optional) Surface treatment: Electrophoresis + spray coating, salt spray resistance ≥480h |
Pressure & high temperature resistance: Adapted to turbocharger exhaust temperature of 150-200℃ and boost pressure of 0.8-1.2MPa, with no easy deformation during long-term operation.
Corrosion resistance & durability: Double-layer anti-corrosion coating combined with alloy material, suitable for dusty, high-humidity working conditions such as construction sites and mining areas.
Perfect compatibility: The bending angle and length of the steel pipe are precisely matched to the vehicle layout, avoiding interference with surrounding components, and no re-drilling or rewiring is required for installation.
